Uni-T Battery Internal Resistance, Voltage, and Temperature Tester UT677A

Description

The Uni-T UT677A is a professional battery internal resistance tester employing the AC 4-terminal measurement method at 1KHz to deliver accurate resistance readings from 0.001mΩ to 3Ω — completely unaffected by contact resistance between test leads, terminals, and battery electrodes. With 1μΩ resolution at the lowest range, ±0.5%FS accuracy across most ranges, simultaneous voltage measurement up to 71V, and NTC temperature sensing from -10°C to +60°C, it provides a comprehensive health assessment for lead-acid batteries, lithium batteries, and ESR parameters of electrolytic capacitors. Bluetooth connectivity, USB interface, PC software, 5000-reading storage, and programmable PASS/WARNING/FAIL thresholds make it the benchmark tool for battery production, installation, solar energy systems, and industrial maintenance environments.

• 🔬 0.001mΩ to 3Ω | 1μΩ Resolution | AC 4-Terminal 1KHz — Contact-resistance-free measurements at 2–200mA measuring current across all ranges per IEC 61010

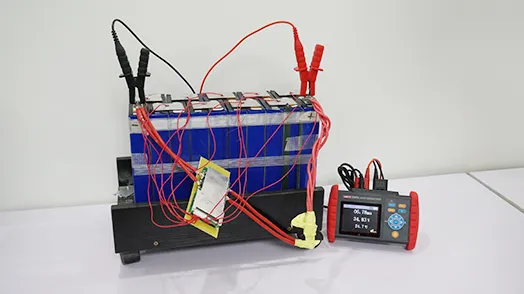

• 🔋 Voltage up to 71V + Temperature -10°C to +60°C — Complete battery health assessment for lead-acid, lithium batteries, and electrolytic capacitor ESR
• 📊 PASS/WARNING/FAIL Preset Thresholds + 5000 Storage — Instant battery health judgment with manual/auto hold, 3.5" TFT 16-bit color display, 200ms response time

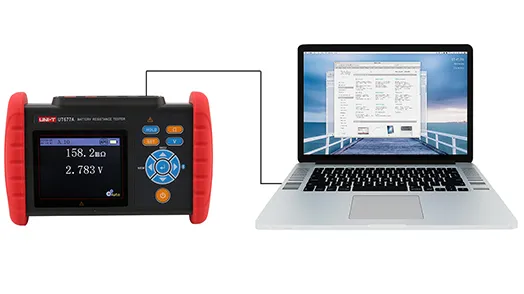

• 📡 Bluetooth + USB + PC Software — Real-time data sync with mobile app and PC software, auto power-off at 15 minutes, 480g portable design
