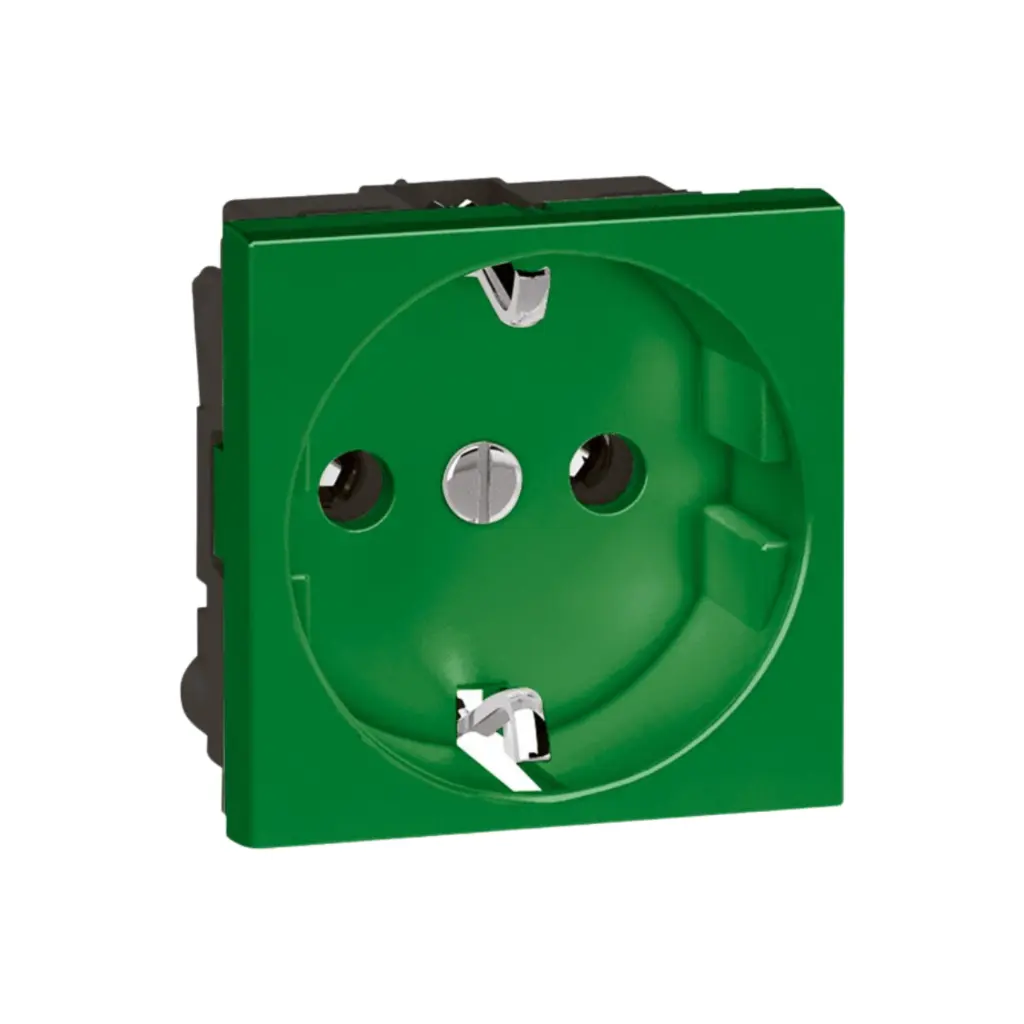

بريزة خضراء 16 امبير بالارضى ارتيور ليجراند
Product charateristics
- Arteor™ - international socket outlets - Mechanisms supplied with rocker plates , to be equipped with support frames and plates
- German standard socket outlets 16 A - 2 modules 2P+E shuttered for child safety - Dedicated green - Can be installed in receptacles for floor sockets
Technical characteristics
| Model | Socket outlet CEE 7/3 (type F) |
|---|---|
| Protective contact | Other |
| Number of active contacts (round) | 1 |
| Number of active contacts (flat) | 0 |
| With complemantary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of units | 1 |
| Number of modules (module system) | 2 |
| Number of socket outlets switchable | 0 |
| Number of phases | 1 |
| Imprint/indication | Other |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Label space/information surface | No |
| Colour | Green |
| RAL-number (similar) | 6016 |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | Yes |
| With function lighting | No |
| Over voltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Module frame |
| Type of fastening | Snap mounting (engagement) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
|---|---|
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With loop through function | Yes |
| With on/off switch | No |
| Colour of switch operator | Green |
| Rotated central insert | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Built-in depth | 31.5 mm |
| Operating / setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Cable nature for connection | Flexible or rigid |
| Cable section | 4-4 mm² |
| Cable support | Other |
| Cover | Central cover plate |
| Connected object | No |
طرق دفع عند الاستلام متعددة | ارجاع مجانى لمدة 14 يوم |
توصيل سريع | ضمان اقل سعر |
طرق الدفع: يتوفر العديد من طرق الدفع
|
|
|
|
|
|
|
|
|
|
|
|
|
|
مرجع داخلي:
572462
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
المواصفات
| الماركة | لجراند |
| العائلة | ارتيور |
| الوظيفة | برايز كهرباء |
| اللون | Green |
