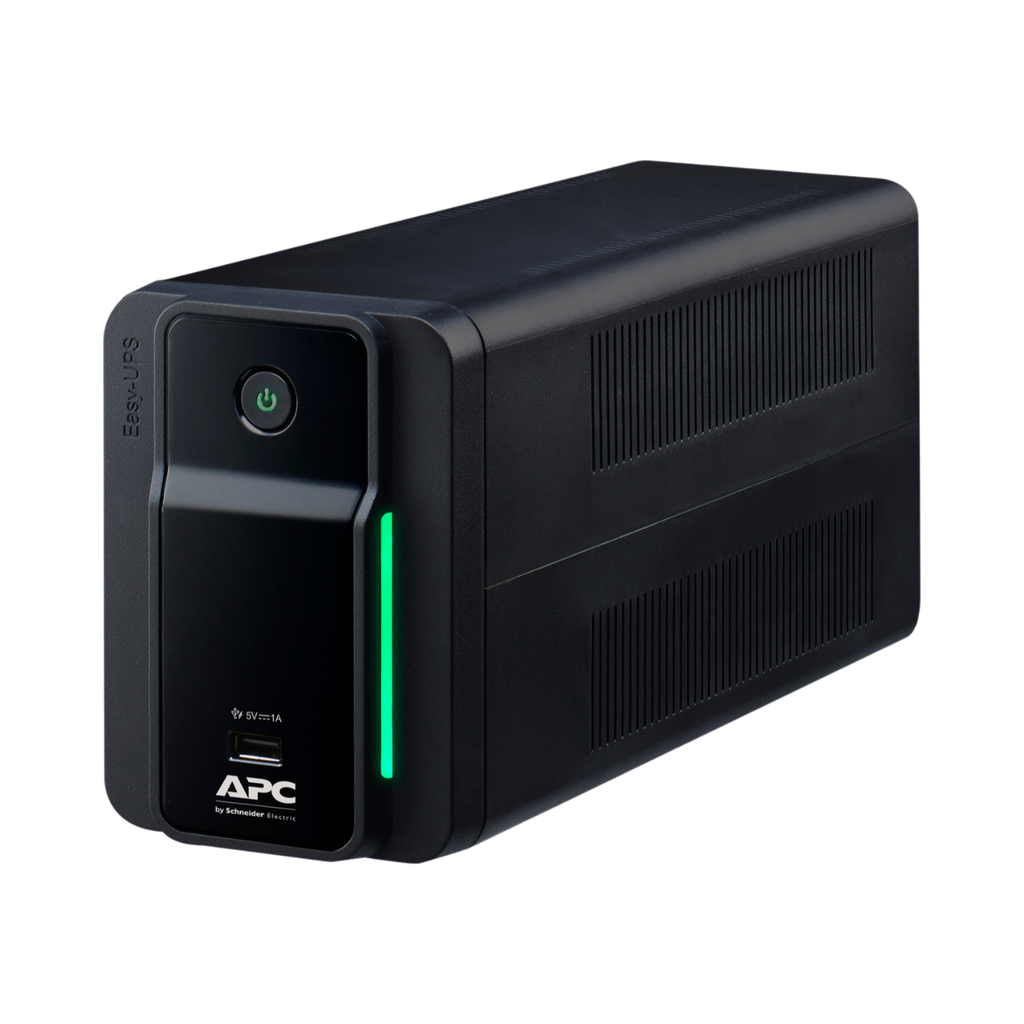

APC Easy UPS BVX 700VA, 230V, AVR, USB Charging, Schuko Sockets
Specifications
| Lead time | Usually in Stock |
|---|
| Run time for loadWinformation_strokeMin-max: 36-360 W | — |
|---|---|
| Max. Capacity Usedinformation_stroke | 100 % |
| Main Input Voltage | 230 V AC 1 phase |
| Main Output Voltage | 230 V AC 1 phase |
| Rated power in W | 360 W |
| Rated power in VA | 700 VA |
| product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | Schuko |
| output connection type | 2 Schuko |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| battery capacity | 7.0 Ah |
| Battery life | 2…3 year(s) |
| Replacement battery | APCRBC110 |
| Extended runtime | 0 |
| Max runtime | 120 min |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Colour | Black |
|---|---|
| Height | 13.8 cm |
| Width | 9.8 cm |
| Depth | 31 cm |
| net weight | 4.2 kg |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| Input voltage limits | 170...280 V 230 V AC |
| Cos phi | 0.51 |
| Maximum configurable power in W | 360 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:00:01 360 W |
| Graph display | 1 |
| Half load runtime | 00:06:00 180 W |
| Maximum configurable power in VA | 700 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Product certifications | CE CB |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 50000 euros |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Surge energy rate | 273 J |
|---|
