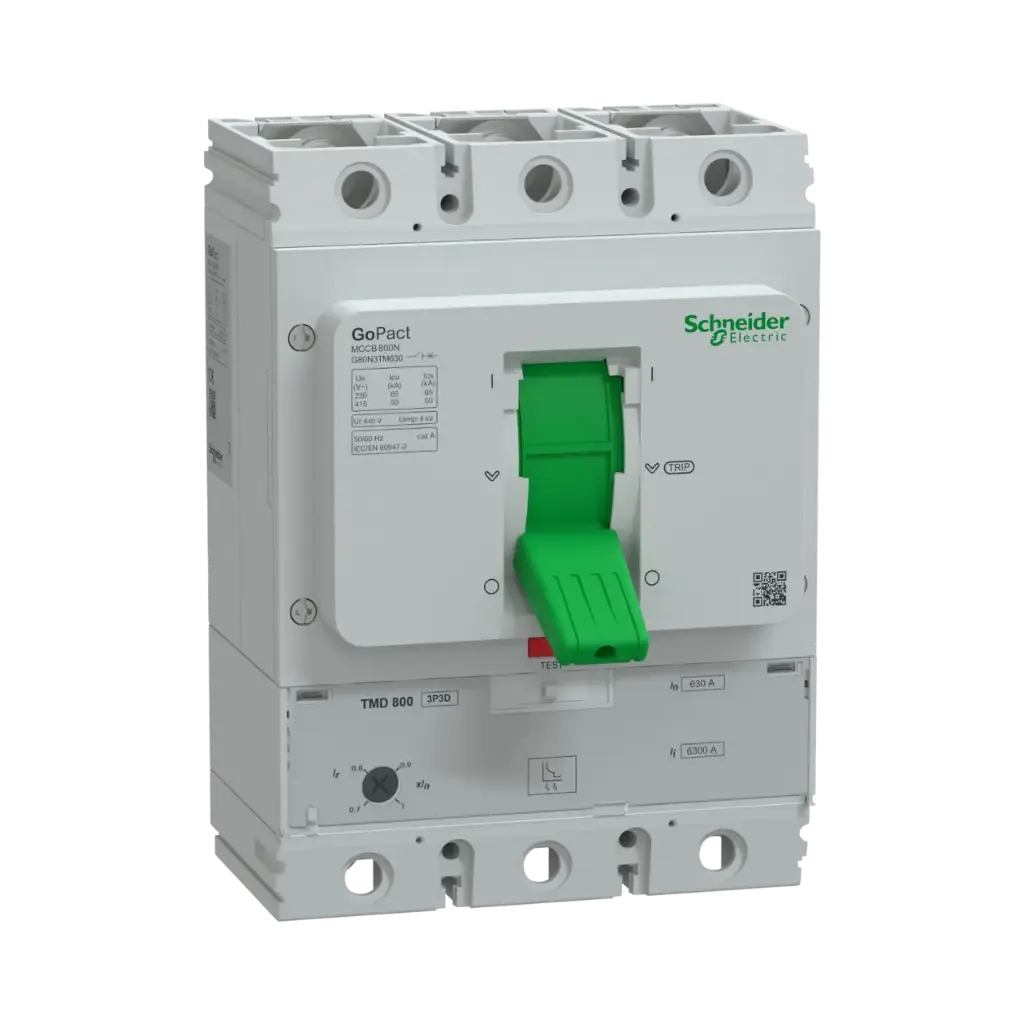

Schneider Electric Circuit Breaker, GoPact MCCB 800, 3 Poles, 50kA at 415VAC, 630A Rating, TMD Trip Unit, Adjustable Thermal Protection
This product is part of the new GoPact Molded Case Circuit Breakers range (MCCB). It is a complete 3 poles circuit breaker made of a 800A breaker frame and of a thermal magnetic trip unit (TMD). GoPact MCCB has a good price-performance ratio for basic applications and delivers a reliable electrical protection for your applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating (In) thermal-magnetic trip unit (TMD). This TMD trip unit provides an adjustable thermal protection Ir (against overloads) with a setting range from 0.7xIn to 1xIn (441A-630A). And it provides a fixed magnetic (against short-circuits) protection set to 10xIn (6300A). GoPact MCCB comes with a variety of optional accessories simple to choose and to install. Product dimensions are 180mm (Width) x 250mm (Height) x 105mm (Depth). The weight is 6.9 kg. GoPact MCCB 800 is IEC 60947-1 and IEC 60947-2 certified. GoPact MCCB range benefits from Schneider Electric quality assurance.
Cash On Delivery | 14 Days Free Return |
Fast Shipping | Lowest price Guarantee |
We accept: See all payment methods
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documents
Internal Reference:
G80N3TM630
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Schneider Electric |
| Product Range | GoPact MCCB |
| Poles | 3P |
| Rated Current | 630 A |
| Breaking Capacity | 50 kA |
