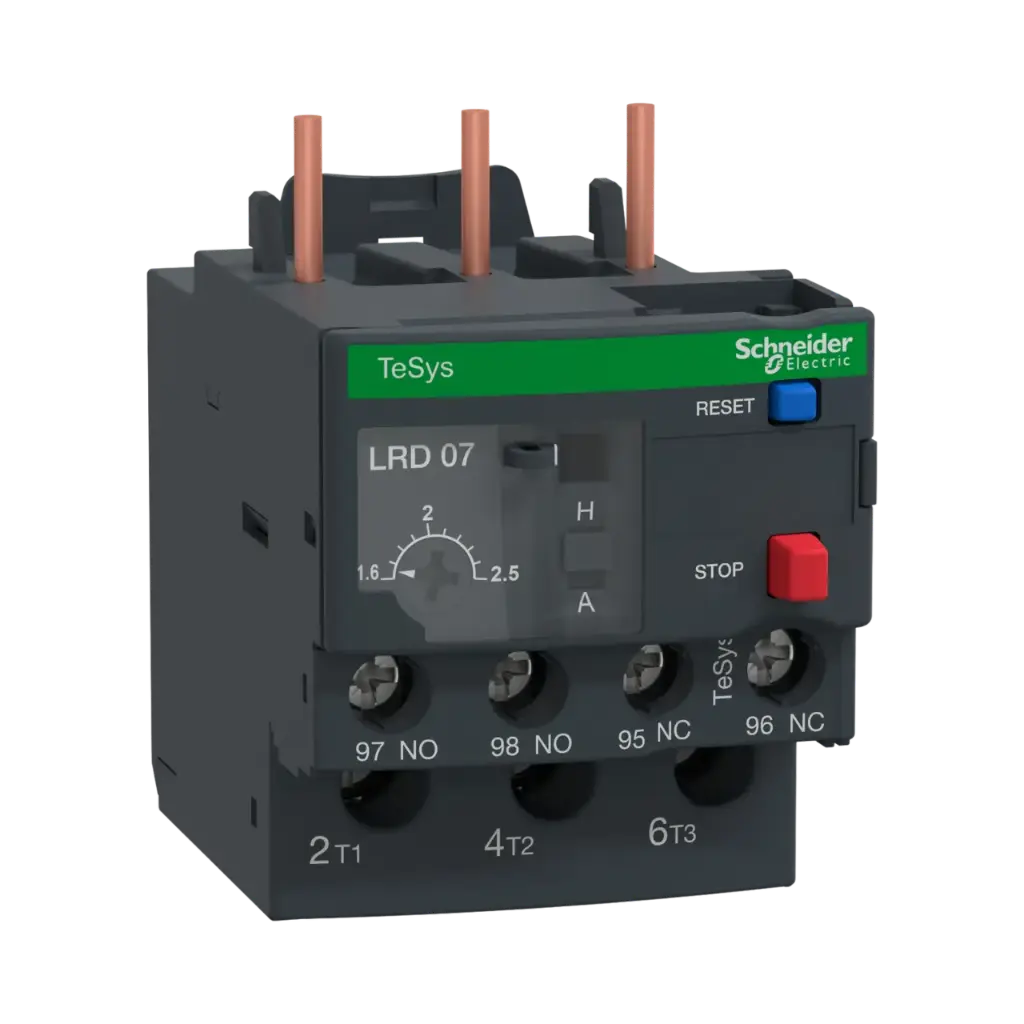

Schneider Electric Thermal Overload Relay, TeSys Deca, 690VAC, 1.6 to 2.5A, 1NO+1NC, Class 10A, Screw Clamp

Schneider Electric Thermal Overload Relay, TeSys Deca, 690VAC, 1.6 to 2.5A, 1NO+1NC, Class 10A, Screw Clamp

https://www.egtrade.me/web/image/product.template/42968/image_1920?unique=cad06fa
(0 review)
TeSys LRD thermal overload relay, 2.5A/690V, thermal setting range 1.6-2.5A, tripping class 10A, for protection of 3-phase motors 0.75kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

1,775.25 LE 1775.25 EGP 1,775.25 LE Tax Included 3,287.50 LE

1,775.25 LE Tax Included 3,287.50 LE

Contact US

  • Brand
  • Product Range

This combination does not exist.

 Cash On Delivery

 14 Days Free Return

 Fast Shipping

 Lowest price Guarantee

We accept: See all payment methods

Contact Us
Documents

Terms and Conditions
In line with our shipping guidelines, the majority of products in our store typically require 24 business hours for order processing and preparation for shipping.
Certain products in specialized characteristics that may need specific storage or production protocols, potentially rendering them unavailable at the time of order fulfillment. Please see also:
Order Review     Shipping & Delivery
Returns & refunds     Warranty Policy
Payment Methods

Share

Internal Reference: LRD07

Specifications

Brand Schneider Electric
Product Range TeSys Deca
