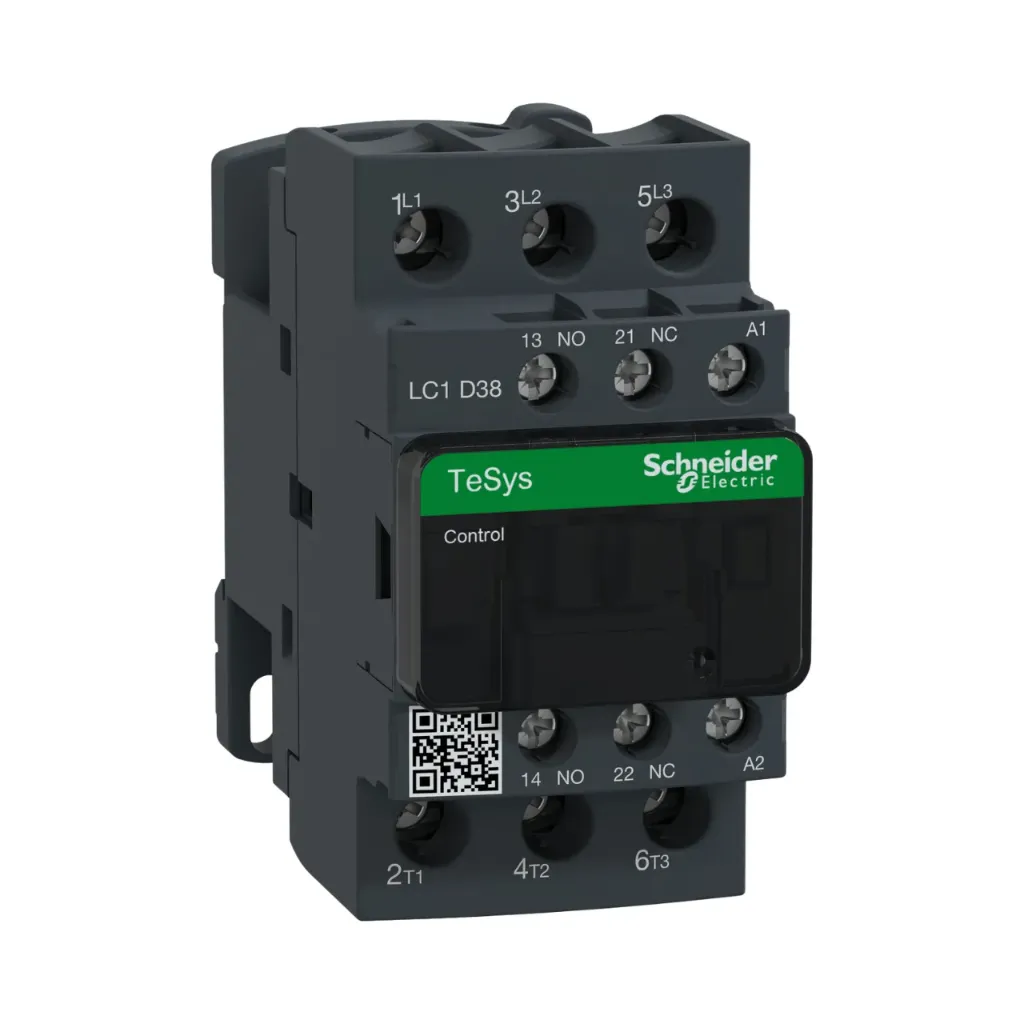

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 38A, 220V AC 50/60Hz Coil, Screw Clamp Terminals

Description

The Schneider Electric LC1D38M7 is a 3-pole TeSys Deca contactor rated at 38A AC-3 for direct-on-line motor control up to 18.5kW at 380–440V AC, with a 220V AC 50/60Hz control coil. As the latest generation of the globally proven TeSys family, TeSys Deca delivers an outstanding 15 million mechanical cycles and 1.4 million electrical cycles at 38A AC-3, with a hold-in coil consumption of just 7VA — up to 80% more energy efficient than conventional electromechanical contactors. Built-in 1NO+1NC auxiliary contacts, mirror contact for safety applications, and compatibility with the full TeSys Deca accessory range make it the go-to solution for motor control centers, HVAC systems, and industrial automation. Certified to UL, CSA, CCC, Marine, UKCA, and EAC. Available from EGTRADE, Authorized Distributor of Schneider Electric in Egypt.

• ⚙️ 38A AC-3 | 18.5kW at 380–440V — Direct motor control across AC-3, AC-3e, AC-4, and AC-1 duty categories up to 690V AC
• 🔌 220V AC Coil | 7VA Hold-in Consumption — Up to 80% energy saving vs conventional contactors, operational range -40°C to 70°C
• 🛡️ 15 Mcycles Mechanical | 1.4 Mcycles Electrical — 6kV impulse withstand, V1 flame retardance, TH tropical treatment, IP20 front face
• 🔧 TeSys Deca Modular Design | 1NO+1NC Auxiliary — Full accessory compatibility, mirror contact for safety circuits, UL/CSA/CCC/Marine/UKCA certified
